Printer Transfer Belts Explained – How They Work, Care Tips, and Replacement Signs

Transfer belts are vital components in many color laser printers, ensuring that printed images have sharp detail and accurate color. Acting as a bridge between the toner cartridges and the paper, the transfer belt carries precisely aligned layers of toner and delivers them in a single pass. This process is key to achieving the vibrant, professional-quality prints that modern printers are known for.

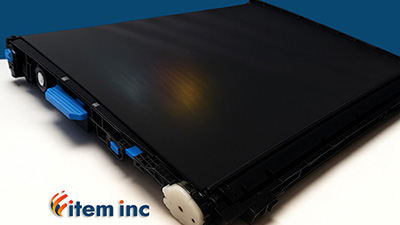

A transfer belt is a large, rotating belt found in many color laser-class printers. It carries layers of toner from the four CMYK cartridges—cyan, magenta, yellow, and key (black)—aligning them precisely in sequence. As the belt moves, each cartridge deposits its toner onto the belt, which then transfers the unified layers onto the paper in a single, smooth pass. This efficient transfer, completed in under a second, broadens the color range achievable by CMYK and significantly boosts image quality—especially in terms of color richness and detail.

The transfer belt works as a central conveyor for color images in a laser printer, carrying precise layers of toner from the imaging drums to the paper. Here’s how it fits into the process:

1. Toner Image Creation - Each CMYK toner cartridge (cyan, magenta, yellow, and black) applies its toner image to its own imaging drum.
2. Toner Transfer to the Belt - As the transfer belt moves past each drum, it collects the toner layer in perfect registration.
3. Color Layer Combination - The belt aligns all four toner layers into one complete image.
4. Image Transfer to Paper - The belt transfers the combined image onto the paper in a single pass.
5. Fusing the Image - The paper moves through the fuser, where heat and pressure bond the toner permanently to the sheet.

By managing the layering and positioning of colors before they reach the paper, the transfer belt ensures prints are sharp, vibrant, and accurately aligned.

To extend the lifespan of a transfer belt and maintain consistent print quality, it’s important to handle and store it properly. Avoid touching the belt’s surface, as oils from your hands can cause contamination or print defects; instead, hold it by its frame or edges. Store the belt in a clean, dry environment away from dust, direct sunlight, high humidity, and extreme temperatures, and keep it in its original packaging until it’s ready for use to protect against scratches and impacts. Never bend or place heavy objects on the belt, as this can cause distortion or misalignment, and always follow the manufacturer’s guidelines for safe handling and storage.

• Frequent Color Misalignment
• Streaks or Lines on Prints
• Faded or Uneven Colors
• Repeating Marks or Spots
• Error Messages or Alerts
• Unusual Noises During Printing

• OKI C610 Transfer Belt Unit: (Part Numbers: 44341901, 44341902, 57106301, 57106302)
• OKI MC770 Transfer Belt: (Part Numbers: 45381101, 45381102)
• OKI C532 Transfer Belt, 60,000: (Part Numbers: 46394901)

• How to replace HP Color LaserJet Pro 4201, MFP 4301 Intermediate Transfer Belt Assembly
• How to replace the Transfer Belt Assembly for Xerox Phaser 7800
• How to replace the Transfer Belt Assembly for Xerox WorkCentre 7525

Transfer belts may work behind the scenes, but their role in producing high-quality, full-color prints is critical. By accurately layering and transferring toner, they ensure sharp detail, smooth gradients, and vibrant colors on every page. Regular care, proper handling, and timely replacement are essential to avoid print defects and keep your printer running at peak performance. Whether you’re troubleshooting color issues or performing routine maintenance, understanding how the transfer belt functions will help you make informed decisions about repairs and replacements. For reliable, high-quality replacement transfer belts and other printer parts, trust Item, Inc. to keep your equipment performing like new
