Inside the Laser Unit of Your Printer: How It Works and When It Fails

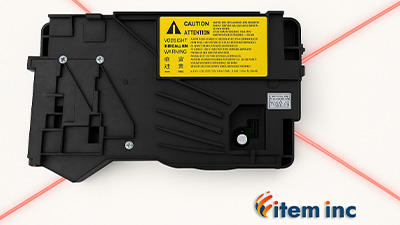

The laser/scanner assembly is the part of a laser printer that begins the entire imaging process by translating digital data into a physical pattern the printer can use. At its core, it consists of a laser diode, a rotating polygon mirror, and a series of lenses and sensors that work together to direct a focused beam of light across the surface of the drum. Wherever this beam hits, it changes the drum’s electrical charge, creating an invisible “blueprint” of the page that shows exactly where toner should later be applied. Without this step, the drum would remain evenly charged, toner would have no guide to follow, and the printing process would stop before it even began. In simple terms, the laser unit acts as the printer’s mapmaker, ensuring that every word, line, and image from your computer is translated into precise instructions for the toner, making it one of the most critical and fascinating components inside a printer.

The laser/scanner assembly, or LSU, is made up of several components that work together to create the invisible image on the drum. At its core is the laser diode, which generates the beam of light that carries the page data. This beam is reflected off a rotating polygon mirror that sweeps it across the drum, while precision lenses keep it focused and sharp. A beam detect sensor ensures proper alignment and timing, so the image stays accurate from edge to edge. Together, these parts convert digital information into a precise electrostatic pattern on the drum, forming the blueprint that toner will later follow.

The laser unit creates the invisible image on the drum, which then attracts toner. From there, the toner is transferred to paper and fused in place, making the laser assembly the first step that drives the entire print cycle. Here’s how it fits into the process:

1. Laser fires - A tiny laser beam is activated, carrying the digital data that will form the page.
2. Mirror scans beam across drum surface - The rotating polygon mirror sweeps the beam back and forth, line by line, across the drum.
3. Drum becomes charged with “invisible image” - Wherever the beam hits, the drum’s charge is altered to create an unseen outline of the page.
4. Toner sticks only where laser hit - Charged toner particles cling to the exposed areas of the drum, following the laser’s pattern.
5. Transfer & fusing happen - The toner image is moved onto paper and permanently sealed in place by heat and pressure.

• Horizontal blank bands across the page.
• Repeated missing sections.
• “Scanner Error” messages.
• Misaligned print or faded areas even with new toner.

How Laser Printers Work
Laser printers use a single laser beam that is bounced off a rotating polygon mirror and passed through lenses to draw the image across the drum line by line. This system offers pinpoint precision and is excellent for sharp text and detailed graphics. However, because it relies on moving mirrors and lenses, the mechanism can wear down or fall out of alignment over time.

How LED Printers Work
LED printers replace the moving laser and mirror system with a stationary LED bar made up of thousands of tiny light-emitting diodes. These LEDs flash on and off to create the page image in a single sweep across the drum. With no moving optical parts, LED printers are mechanically simpler, often smaller, and generally more durable.

Which Is Better?
Laser printers are typically preferred for high-resolution printing where clarity and fine detail matter most, such as in text-heavy documents or professional graphics. LED printers, on the other hand, excel in reliability and lower maintenance needs, making them a cost-effective option for offices that value speed and durability over ultra-fine resolution.

The laser/scanner assembly is the true starting point of every laser print job, transforming digital data into the precise electrostatic pattern that guides toner placement. Without it, the drum, toner, transfer belt, and fuser would have nothing to work with, making this hidden component one of the most critical parts inside any printer. By understanding how the laser unit functions and recognizing the signs of failure, users can better maintain their devices, troubleshoot print quality issues, and make informed decisions about repairs or replacements. Whether compared to newer LED technology or viewed within the larger printing process, the laser/scanner assembly remains a vital piece of the puzzle, ensuring accuracy, reliability, and quality with every page printed.
